MBCD 1.3-2.2
THE USER-FRIENDLY MODEL
Each of our pilot scale coating machines can be used for the manufacturing of products for the pharmaceutical, the cosmetic or food industry. Regardless, if you want to produce patches, oral dissolvable film strips, mucoadhesives, facial masks or any other coating, our pilot scale coating machines always work reliable to achieve coatings with high accuracies. even complex products such as multi-layer patches or coatings, which have to meet close limits regarding its residual solvent levels can be produced with our laboratory machines.

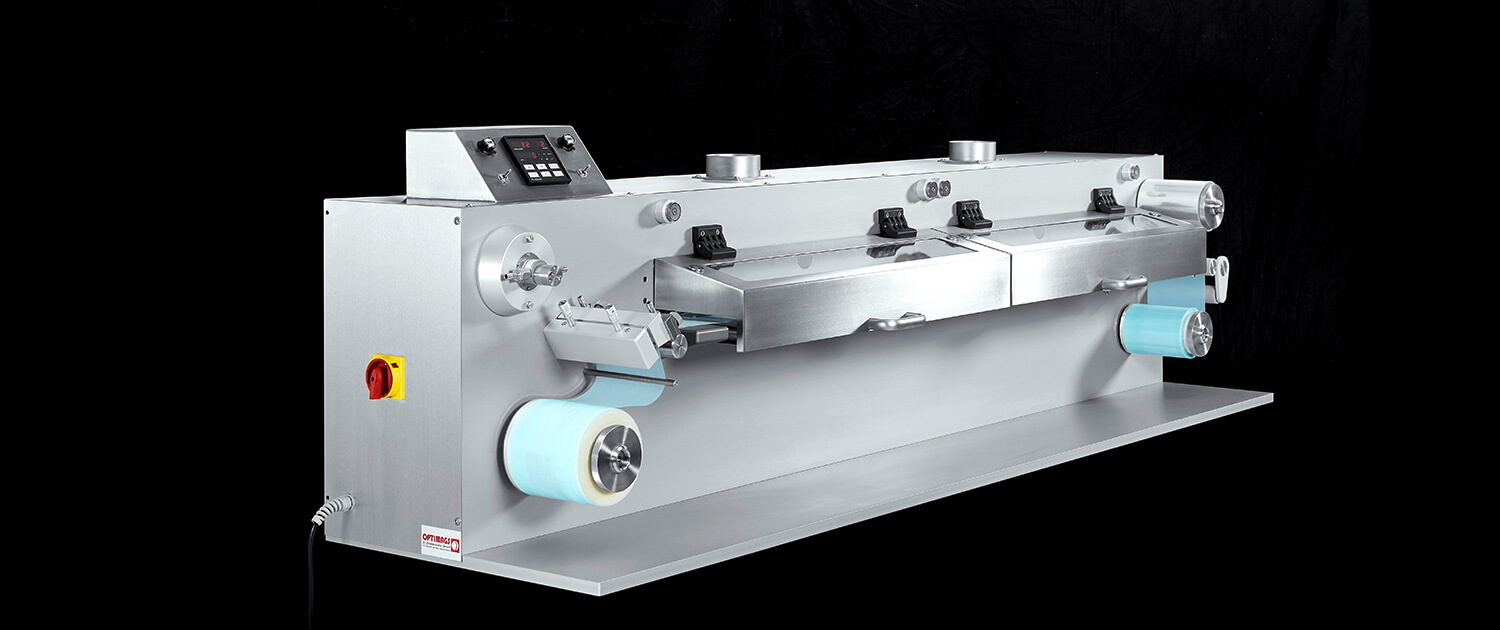

The model MBCD 1.3-2.2 has two dryer zones equal in length and arranged in a linear way. The temperature of each drying zone can be individually regulated. This leads to higher production speeds or you can produce products which have a higher solvent content and thus need longer drying times. even thick coatings which require long drying times can be produced in a reliable way with high accuracies.
The user-friendly model consists of:
- Unwinder: to unwind the carrier foil in a continuous way
- Ultra-precise tooth gear pump: for dosing the coating fluid precisely
- Optimags patented coating system: to coat in a very precise and accurate way; suitable for thin and thick coatings
- Two drying zones, arranged linear:
- drying zone 1: is 800mm long; temperature is individually controlled by a temperature controller;
- drying zone 2: is 800 mm long; temperature is individually controlled by a temperature controller
Drying zone can be delivered in two types:
- Standard type: max. temperature T = 105°C
- Optional: max. temperature T = 120°C
- Rewinder: to rewind coating/ laminate
- Laptop: software to document the batch production and machine parameters installed
Specs MBCD 1.3-2.2
| Dimensions LxWxH | 2215 mm x 645 mm x 700 mm |
|---|---|
| Weight | ~ 250 kg |
| Power supply | 230 V/115 V, 50…60 Hz, 1500 W |
| Substrates/web | – Non-elastic foils, paper, non-elastic textiles, – Thickness: 23…75 µm – web width = 150 mm – core diameter: 3” |
| Covering/backing foil | – Non-elastic foils, paper, non-elastic textiles, – Thickness: 23…75 µm – web width = 150 mm – core diameter: 3” |
| Generated laminate | – Non-elastic foils, paper, non-elastic textiles, – Thickness: 23…75 µm – web width = 150 mm – core diameter: 3” |
| Coating fluids | Newtonian solutions, dispersions Viscosity: 0,1…7 Pas |
| Coating width | 10…120 mm |
| Coating thickness | 40…1000 µm (wet) |
| Coating accuracy | +/- 1,5 µm for a 100 µm dry PSA coating |
| Coating speed | 0,01…0,3 m/min |
| Rewinding speed | 0,01…3 m/min |
| Dryer | Standard: Temperature [°C]: 20…105 +/- 0,5 Optional: Temperature [°C]: 20…120 +/- 0,5 PT100-controlled Digital temperature display Dryer length: 1.600 mm Drying time: depending on coating solution |
Output in comparison
| Output [units/min] | MBCD 1.3-1 | MBCD 1.3-2.1 | MBCD 1.3-2.2 | MBCD 1.3-3.1 | MBCD 1.3-3.2 | MBCD 1.3-4.1 |
|---|---|---|---|---|---|---|
| ODF strips 20x30mm | 16,5 | 20 | 33 | 33 | 33 | 200 |
| Patches 10cm², round | 4,2 | 5,1 | 8,4 | 8,4 | 8,4 | 68 |
Accessories
FOR MBCD 1.3-2.2
Doctor blade
For high viscous fluids
Multi-channel coating knife
For coatings with different patterns next to each other; needs an extra pumping unit TGP 1.3
